  2. HFP Handheld
HF

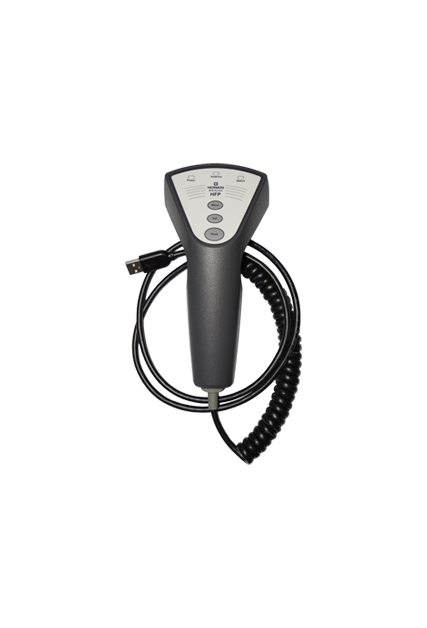

The RFID reader HFP is a handheld reader with keyboard emulation for 13.56 MHz transponders according to ISO standard 15693. The reader is automatically recognized when connected to a USB port without driver installation. A read operation is initiated with the push of a button and is indicated by an LED and a beep when identification is successful. The read data is displayed in an active input field or an application program, as with keyboard input (HID Human Device Interface).

Ergonomic case
Easy to use due to ergonomic grip area, for both right and left handed users.

Membrane keypad
Easy operation through direct selection keys and LED displays in reading mode and menu navigation.

Simple process integration
Easy integration of the RFID solution into existing processes through the use of an HDI interface

Flexible configuration
Menu-guided setting of parameters enables flexible intuitive configuration.

Integrated antenna
The reader is equipped with an integrated antenna.

Customer specific adaptations
Customer-specific functionalities can be implemented optionally.

Please scroll or swipe to view more contents of the table below.

Article numberInterfacesProtocolLength
HRF.R.HFP.0I.KU.10.30AUSBKeyboard3.0 m
HRF.R.HFP.0I.AU.10.30AUSBASCII3.0 m
HRF.R.HFP.0I.SU.10.30AUSBSES3.0 m
  • Technology

    RFID HF Frequency 13.56 MHz (ISO 15693)

  • Functions

    • Mobile HF reader with medium reading range
    • Installation-free commissioning (Plug&Play)
    • Operation at the push of a button
    • Optical and acoustic display
    • Keyboard emulation, optional emulated RS232 interface
  • Components

    • Case for ergonomic one-hand operation
    • Integrated membrane keypad with LEDs
    • USB connection cable in variable lengths
  • Features

    • Typical reading range with HF transponder card approx. 120 mm
    • Transmitting power approx. 200 mW
    • User-friendliness due to easy handling
    • Easy integration into existing processes
    • Flexible parameterization through simple menu navigation
  • HFP Handheld (Datasheet)

    HFP Handheld (Datasheet)

    Datasheet

    HFP-Handheld.zip

    Deutsch/English

ConnectionUSB, variable cable length up to 3m
Antennaintegrated
Transmission frequency13.56 MHz, ISO 15693
Transmitting power200 mW
Dimensions185 x 90 x 60 mm
Weight450 g
Case materialABS
Protection classIP 40
Operating temperature0 °C to 50 °C
Storage temperature-40 °C to 85 °C
Permissible humidityat 50 °C 25% to 80%
Storm recording80 mA / 300 mA (passiv/aktv)
Voltage5 V (+/-5%)
ConformityCE, RoHS, REACH
